Product name : MT100TBG-LWQ Gas Turbine Flowmeter with Oil PUMP
|
| Details: |
MT100TBG-LWQ Gas Turbine Flowmeter with Oil PUMP
1 ) high precision, good repeatability, small pressure loss and good seismic performance; 2 ) Adopt high-quality bearings, with small friction resistance, good sealing performance and name of hand;
3 ) integrating microprocessor, flow sensor, high-precision temperature and pressure sensor, directly measuring the flow,
temperature and pressure of the gas to be measured, and automatically performing flow tracking compensation and
compression factor correction calculation;
4 ) The instrument has pulse signal and analog signal output, and can directly realize centralized collection and real-time
management of computer data through RS485 communication interface or GPRS system.
5 ) The power consumption is low and can be supplied by internal battery or external power supply.
6 ) It has the function of real-time data storage, which can prevent data loss during battery replacement or sudden power
failure, and internal data can be stored permanently in the power failure state.
7 ) It can be used with IC card prepayment system to facilitate trade settlement;
8 ) The explosion-proof marks of explosion-proof products are EXIBIT 4 and EXIBIT 6
3.5.1 working power supply
A internal instrument power supply: a 3.6 VDC lithium battery, which can work normally when the battery voltage is 3.1 ~
3.6v;
B internal GPRS power supply: 1 6.6 VDC lithium battery, which can work normally when the battery voltage is 5.0 ~ 6.6v;
C external power supply: + 24 VDC 15 %, ripple ≤ 5 %, suitable for 4 ~ 20mA output, pulse output, RS - 485, etc.
D external power supply ( solar ) GPRS power supply: + 5v DC + 7 VDC.
3.5.2 overall power consumption: external power supply, < 1w
Internal instrument power supply, average power consumption ≤ 1MW, can work continuously for more than 5 years.
Internal GPRS power supply: according to the average number of daily communications ( 2 - 12 times ), it can work
continuously for one to five years.
3.5.3 Pulse Output Mode
1 ) Pulse signal of base meter: ( used for calibration of instrument ):
The original pulse signal of the base meter detected by the flow sensor is directly output through an amplifier with a high
level of 20V or higher and a low level of 20V or higher
|
| Related Products : |
|
|

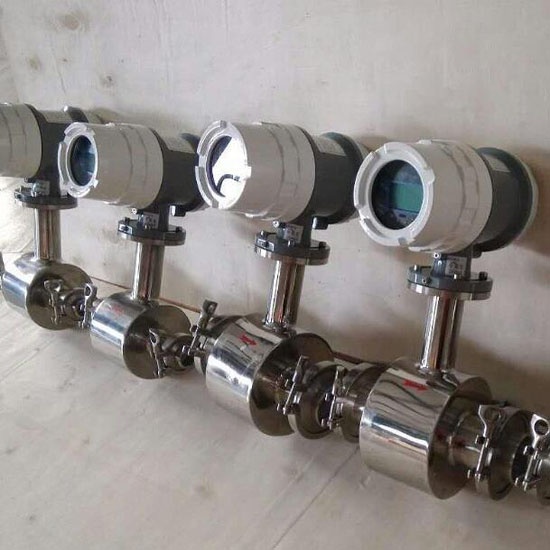

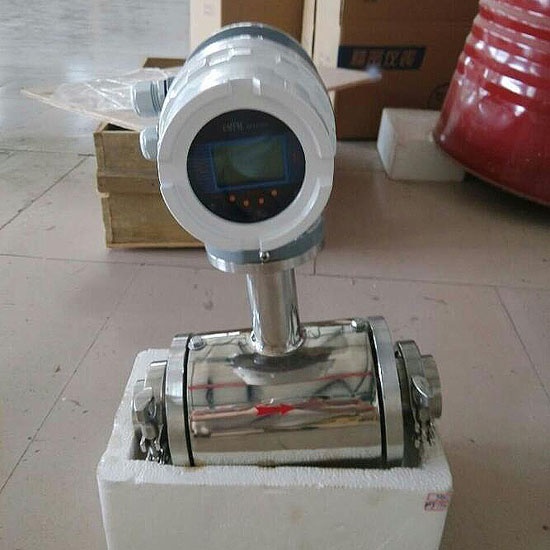

Electromagnetic Flowmeter
