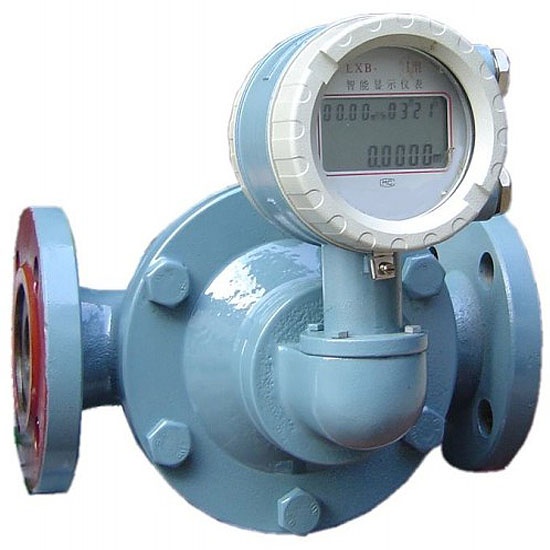

Technical Parameters of Digital LCD Gear Flowmeter
Inside nominal diameter (mm)
|
8~250
|
Accuracy
|
0.2%,0.5%
|
Pressure loss
|
0~1000Mpas<80kpa
|
Working pressure
|
1.6,2.5,4.0,6.3,10,16,25,42MPa
|
Temperature range
|
-20°C~+300°C
|
Dielectric viscosity
|
0.1~1000Mpas
|
Environment condition
|
The temperature of -20 °C ~ +50 °C moisture ≤ 85%, pressure 86kpa ~ 106kpa
|
Connection flange
|
GB, the other can according to user specified flange standard
|
Anti-hazard classification
|
Intrinsic safety type laII CT4, explosion suppression dII BT4
|
Standard Flow ranges
Inside nominal diameter (mm)
|
Flow range m3/h
|
Accuracy class 0.5
|
Accuracy class 0.2
|
8
|
0.05~0.5
|
0.1~0.3
|
10
|
0.1~0.6
|
0.2~0.6
|
15
|
0.16~1.6
|
0.5~1.5
|
20
|
0.25~2.5
|
0.8~2.4
|
25
|
0.6~6.0
|
2~6
|
40
|
1.6~16
|
5~15
|
50
|
2.5~20
|
6~18
|
80
|
6~48
|
12~48
|
100
|
8~80
|
20~60
|
150
|
25~200
|
60~180
|
200
|
45~360
|
100~300
|
250
|
80~500
|
150~450
|
More details and specifications please refer to sales, or download the brochure.
|
