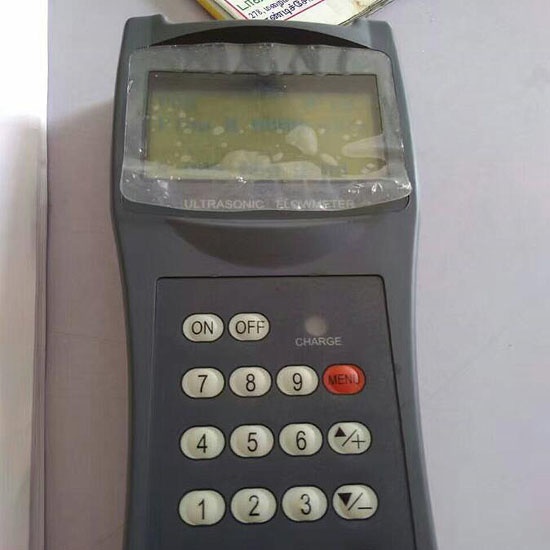

Technical Parameters of MT100H Handheld Ultrasonic Flowmeter
Item
|
The Specifications
|
Linearity
|
0.5%
|
Accuracy
|
±1% first to meet the accuracy in domestic
|
Repeatability
|
0.2%
|
Response Time
|
0-999 seconds, user-configurable
|
Velocity
|
0.01±32m/s
|
Pipe Size
|
20mm-6000mm
|
Security
|
Setup values Modification Lockout. Access code needs unlocking
|
Display
|
4 lines English characters on-screen display instantaneous flow, velocity,, cumulative flow, signal status working hours and so on .
|
Transducers
|
Model M1 for standard, other 3 models for optional
|
Transducer Cord Length
|
Standard 2x10 meters, optional 2x 500 meters
|
Power Supply
|
3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation. 100V-240VAC for the charger
|
Housing Material
|
ABS
|
Size
|
Small size 220×92×32mm
|
Weight
|
Light weight 538g with batteries
|
MT100H Handheld Ultrasonic Flowmeter Features:
Applicable to
|
Applicable for steel, stainless steel, cast steel, PVC, FRP and other uniform dense quality pipe
|
Liquid types
|
water, sea water, sewage, alcohol, various oils such as uniform, single, stable liquid
|
Output Signal
|
OCT output of positive and negative, the net cumulative pulse signal and frequency signal (1-9999Hz optional)
|
Data Interface
|
RS232 interface is used for net testing or export the record data. RS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.
|
Straight pipe length
|
Upstream>10D,Downstream>5D, Length from pump exit>30D
|
Data Logger
|
Built-in data logger can store over 2000 lines of data
|
More details please refer to sales or download brochure, FOB price list please download here.
|
