Function
|
Integrated type
|

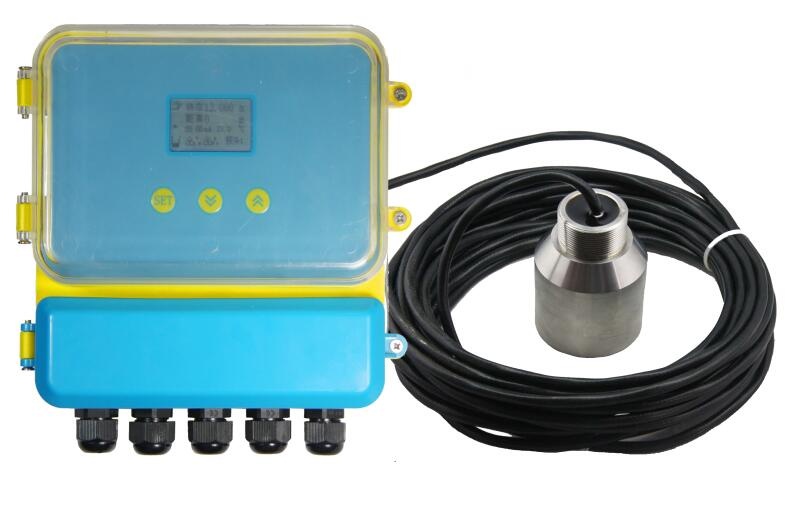

Split type
|
|
Range
|
0.1l/s～99999.99 m³/h
|
|
Cumulative Flow
|
biggest：4290000000.00 m³
|
|
Max range for level
|
3m
|
|
Accuracy for level
|
0.5%
|
|
Resolution
|
3mm or 0.1%（bigger）
|
|
Display
|
Chinese / Egnlish LED
|
|
Accuracy for Flow
|
Standard weir:1～5%
(meet the requirements of national standard weir and channels)
Non-standard weir: 10～30%。
|
|
Analog output
|
(Four-wire system) 4～20mA/750Ωload
|
|
Delay output
|
(optional)two groups :AC 220V/ 8A or DC 24V/ 5A，
|
|
Power supply
|
Standard:24VDC 100mA；optional: 220V AC+15% 50Hz。
|
|
Power supply
|
(optional)12VDC、battery、solar
|
|
Environment
Temperature
|
LED:-20～+60℃，Probe: -20～+80℃
|
|
Environmental pressures
|
Standard atmospheric pressure
|
|
Environment humidity
|
≤90%RH， Non-condensing
|
|
Process temperature
|
-20～80℃；
|
|
Process pressures
|
Standard atmospheric pressure
|
|
Communication
|
Optional:485，232，MODBUS-RTU protocol
|
|
Protection Grade
|
LED:IP67 Probe: IP68
|
LED:IP65，probe:IP68
|
|
Cable Probe
|
No
|
Standard:10m，
The longest:100m
|
|
Probe installation dimension
|
M48x2mm thread + matching nuts
|
|
Probe
Material
|
Standard: ABS
Teflon material in corrosive environment
|
