Products > Ultrasonic Flow meter > Flange Thread Inline Ultrasonic flowmeter > MT100W Inline Water Inline Ultrasonic Pipe Flow meter

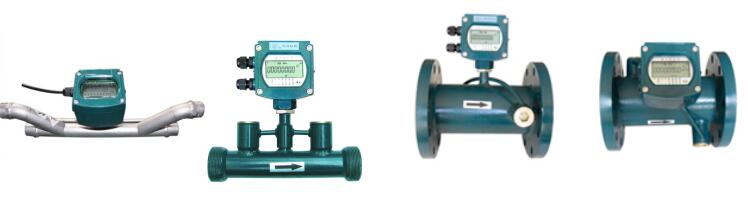

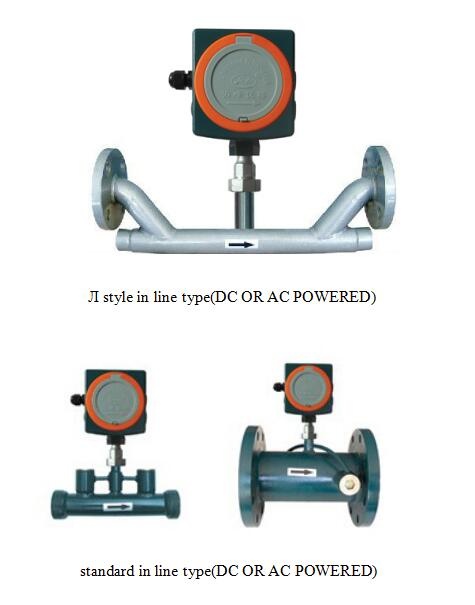

Product name : MT100W Inline Water Inline Ultrasonic Pipe Flow meter
Price : Negotiable
←[Previous Product]
Online Inquiry         Email Us

  Details:



1. operating power :AC 85—264V or isolation DC 24V

2. current: 50mA(under the condition of connection without keyboard display and sound of buzzer)

3. output optional: one channel standard isolation RS485 output

              One channel isolation 4-20mA or 0-20mA passive output.

              Two channel OCT output(programmed between the pulse width(6-1000ms),default before leaving
factory (200ms))

4. input optional: two channel three wire system PT100 platinum resistor input loop,to make heat meter has the
function of displaying heat quantity.

5. display:2*10 back-lit LCD(Chinese and English optional)

6. operating:magnetic 4 keypads to operate

7. other functions: automatic memory the positive,negative,net totaliser or flow rate and heat quantity of the
last 512 days,128 months,10years

             Automatic memory the time of power on/off and flow rate of the last 30 times, realize to replenish
by hand or automatically,read the data through Mod
-bus communication protocol.

8. protection level:IP68


More details please refer to Sales or Download the brochure.
