Product name : MT100VA Series Metal Tube Rotameter

Online Inquiry         Email Us

  Details:

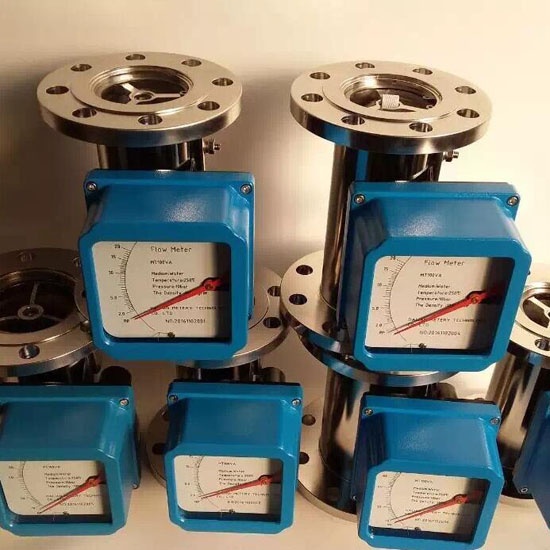

MT100VA Series Metal Tube Rotameter


Caliber of flow meter    DN15DN25DN50DN80DN100DN150 For other caliber dimensions, please negotiate with the manufacturer.

▲Range of flow           Liquid1.0150000l/h

Gas0.053000m3/hFor the detailed flow range, refer to the Table of Flow on Page 11.

▲Measure Ratio           101201special

▲Precision               Grade 0.5, Grade 1.0 (special)

▲Pressure rating         DN15DN25DN504.0MPaMax: 20MPa)
DN80DN100DN1501.6MPa DN80Max 10MPaDN100Max  6.4MPaDN150Max 4.0MPa

▲Medium temperature      Standard-30+120high temperature120350

▲Power supply            24VDC1236VDC

▲Output signal           420mADC (two-wire configuration); attached HART Protocol allowed

▲Output load             500Ω24V power supply

▲Environmental temperature  Local type-40120

Remote-control type-3060

▲Storage requirement   Temperature-4085    humidity≤85%

▲Connection mode      Flange connecting. Flange standard GB/T9119-2000; User’s appointment allowedFor other connection modes, please negotiate with manufacturer

▲Cable interface       M20×1.5

▲Housing protection grade IP65

▲Mark of explosion-proof  Intrinsic safety typeExiaIICT6

explosion-proof typeExdIICT6

▲Pressure loss          See table of flow for detailed information

▲Viscosity of medium    DN15η5mPa.s   DN25η250mPa.s

 DN50DN150η300mPa.s

▲Contact material    R13041Cr18Ni9Ti;      Ro3160Cr18Ni12Mo2Ti;
RL316L00Cr17Ni14Mo2Ti;   TiTitanium alloy
RpPTFE lining










More details please refer to Sales for PDF Manual
