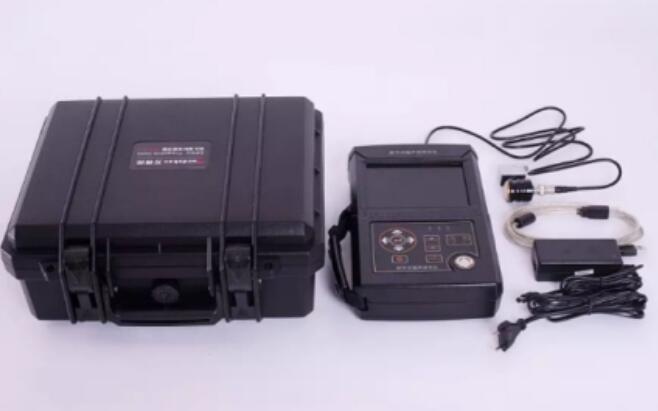

MT1000E Ultrasonic Flaw Detector
Designation
|
Technical Data
|
Range of scanning (mm)
|
Range of scanning (mm):0~10000
Steps: 2.5,5,10,20, 30,40,50,60,70,80,90, 100,150,200, 250, 300, 350, 400, 450,500,600,700,800,900,1000,2000,3000,4000,5000,6000,7000,8000,9000,10000
Adjusting step: 0.1mm(2.5 mm~99.9mm),1mm(100mm~10000mm)
|
D-delay (ms)
|
D-delay (ms):-20~+3400
Steps: -20,-10,0.0, 10, 20, 50,100,150,200,250,300,350,400,450,500, 600,
700,800,900,1000,1500,2000,2500,3000,3400.
Adjusting steps: 0.1(-20ms~999.9ms),1(1000ms~3400ms)
|
P-delay (ms)
|
P-delay:0.0~99.99
Adjusting steps: 0.01
|
MTLVEL(m/s)
|
MTLVEL:1000~15000
10 fixed levels: 2260,2730,3080,3230,4700,5920,630012000,13000,14000,15000
Adjusting steps: 1
|
Working mode
|
Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)
|
Frequency Range (MHz)
|
0.5~20
|
Gain adjustment (dB)
|
0~130
Adjusting step: 0.0,0.1,0.5,1,2,6,12
|
Reject
|
0%~80% of screen height, step: 1%
|
Vertical linear error
|
Vertical linear error is not more than 3%
|
Horizontal linear error
|
Not more than 0.2% in the scanning range
|
Sensitivity Leavings
|
≥62 dB
|
Dynamic range
|
≥34dB
|
Alarm
|
Three modes, i.e. forbidden wave, loss wave and auto
|
A-Scan display area
|
Full screen or local
A-Scan display freezing and de-freezing A-Scan filling
|
Data save
|
800 A-Scan images (including setting of instrument)
|
Standard communication interface with PC
|
USB
|
Measuring unit
|
mm/inch
|
Battery
|
Li battery 7.4V 4800mAh
|
Power adaptor
|
Input 100V~240V/50Hz~60Hz
Output 9VDC/1.5A
|
Working temperature
|
-20℃~50℃
|
Working humidity
|
20%~90%
|
Port type
|
BNC/LEMO
|
Overall dimension (mm)
|
50×160×238
|
Weight (kg)
|
1.0
|
More details please refer to sales or download the brochure
|
